I. Pre-Installation: Preparing a Solid Foundation is Key
Building a resin roof tile shed is just like constructing a house—without a solid foundation, everything else fails. First, select a flat, clear plot of land away from strong winds and remove all debris or weeds. We highly recommend using 40×40mm galvanized square steel tubes for the vertical columns, with a maximum spacing of 1.5 meters.
🧰 DIY Checklist (Prepare beforehand): Tape measure, electric drill, spirit level, and specialized waterproofing roofing screws with rubber washers. Don't wait until you start working to realize you are missing tools.

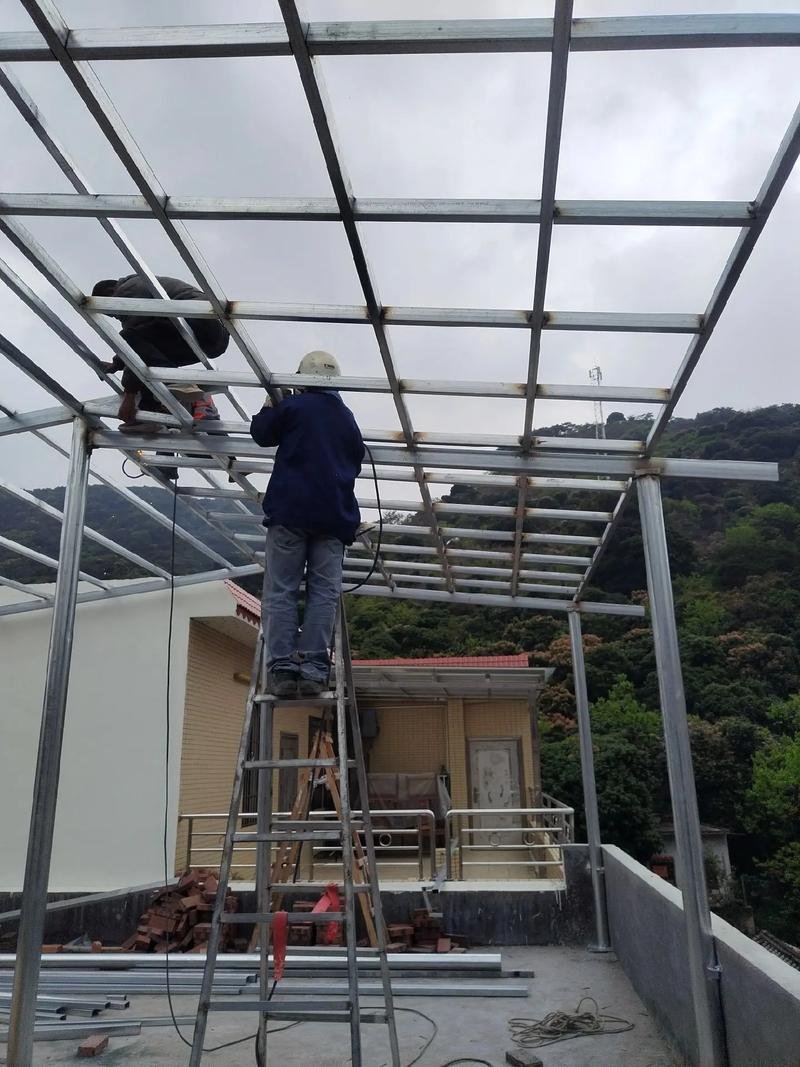

II. Framing Construction: Building the Skeleton First
- Column Fixation: Secure the columns using concrete pouring for bases or heavy-duty expansion bolts. Ensure the vertical alignment error is under 3mm.
- Beams Connection: Use 30×30mm square tubes to form a rectangular truss frame at the top. Remember to apply anti-rust paint to all welding joints.
- Purlin Installation: Place a support purlin every 60 cm to form a high-strength load-bearing grid for the tiles.
III. Roof Sheet Laying: Professional Secrets for Waterproofing
Always start installing the roof panels from the lower eave and work your way up. Ensure a 10cm vertical overlap between the upper and lower sheets, and a 1-crest (1-wave) horizontal overlap left to right.
⚠️ Pro Installation Tips:
- Screw Placement: Always drill roofing screws directly on the crest (top wave) of the panel, not in the valley. Tighten until the rubber washer is slightly compressed.
- Ridge Cap Sealing: Use a matching resin ridge cap at the peak and apply professional silicone sealant to all joints.
- Edge Trimming: Cut the edges neatly using specialized sheet shears. Avoid snapping the tiles forcefully to protect the waterproofing integrity.
- Final Check: Inspect the entire structure and fill any potential water entry points with structural silicone gel.
